Description

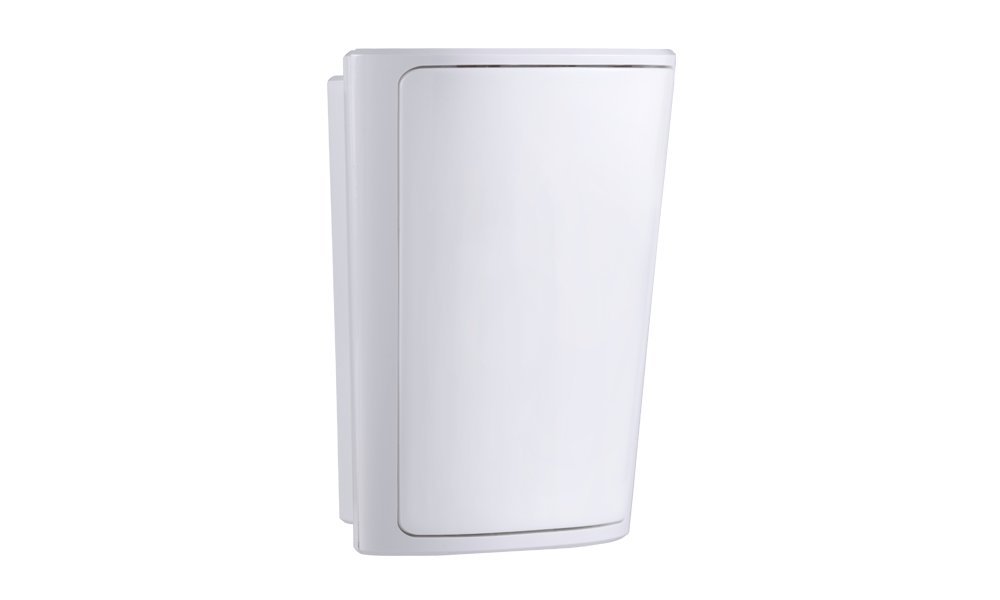

NEO Wireless Indoor Pet-Friendly PIR Detector (868MHz)

Model: PG8914

The PG8914 is a sophisticated 2-way wireless PIR motion detector that offers robust indoor security while minimizing false alarms. It features advanced Target Specific Imaging™ (TSI) technology, allowing the sensor to distinguish between a human intruder and a pet. This makes it the ideal choice for residential homes and small businesses where animals are present.

---

Key Features

• Smart Pet Immunity: Provides reliable protection in homes with pets weighing up to 38kg (85lbs), ensuring your security system stays active without being triggered by domestic animals.

• Target Specific Imaging™: Uses a combination of advanced optics and digital signal processing to analyze the size, speed, and shape of a moving object.

• Superior Coverage: Provides a wide-angle detection pattern of 12m x 12m (39ft x 39ft), ensuring a single unit can cover an entire standard-sized room.

• PowerG Wireless Efficiency: Leverages AES-128 encryption and Frequency Hopping to prevent interference, while offering a massive wireless range that simplifies installation in large properties.

• Fresnel and Cylindrical Optics: Uses a hybrid lens system to provide uniform sensitivity throughout the coverage area, including “creep zone” protection directly beneath the sensor.

• Extended Battery Life: Designed for low power consumption, typically lasting up to 6–8 years on a single battery.

---

Technical Specifications

Feature	Specification
Frequency	868MHz (PowerG Protocol)
Detection Range	12m x 12m (90° coverage)
Pet Immunity	Up to 38kg (85lbs)
Battery Type	3V CR123A Lithium
Battery Life	6–8 Years (Typical use)
Mounting Height	1.8m to 2.4m
Operating Temp	-10°C to 50°C
Dimensions	83 x 61 x 42 mm
Tamper Protection	Front cover and back-wall tamper

---

Installation Benefits

• Tool-Free Battery Replacement: The easy-access battery compartment allows for maintenance without needing to remove the device from the wall.

• Link Quality Indicator: A multi-color LED on the front of the device allows the installer to confirm a strong connection to the NEO panel in real-time, ensuring the device is mounted in an optimal location.

• Modern, Compact Profile: The sleek, curved design is far less intrusive than traditional PIRs, fitting discreetly into corners or flat on walls.
