Description

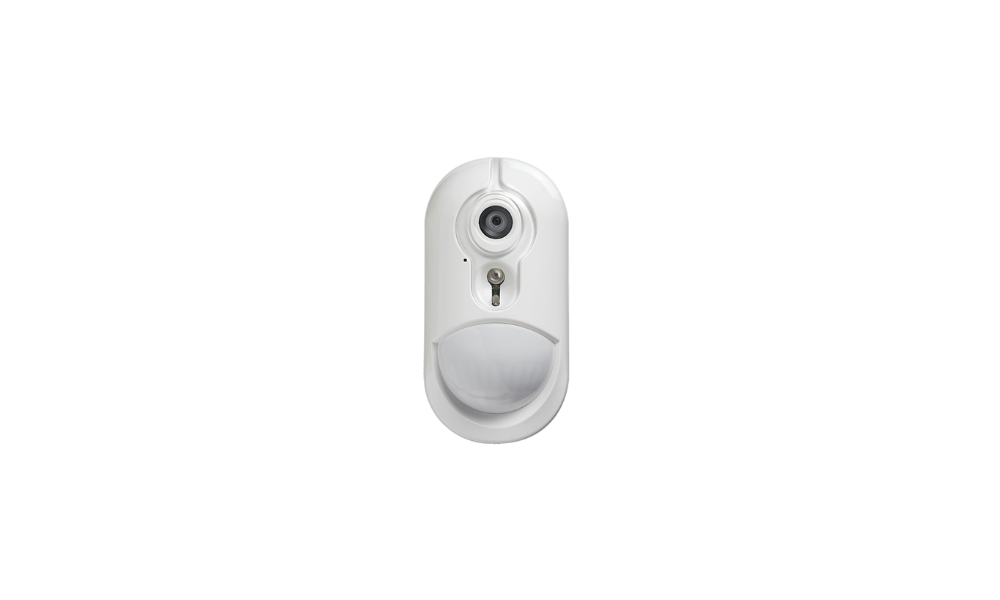

The DSC NEO Wireless PIR Camera Detector (PG8934P) is a high-performance indoor security solution that combines reliable motion detection with visual alarm verification. Operating on the 868MHz frequency using PowerG technology, it is designed to minimize false alarms while providing homeowners and monitoring stations with real-time imagery of any intrusion.

---

Core Functionality: Visual Verification

• Instant Capture: The built-in CMOS camera activates the moment the PIR sensor detects movement.

• Day & Night Capability: Features integrated IR (Infrared) illumination, allowing the camera to capture clear images even in total darkness.

• Real-Time Transmission: High-resolution color images are sent via the alarm panel to the user’s smartphone or a central monitoring station to confirm the threat.

---

Key Features

• Pet Immunity: Equipped with “Target Specific Imaging” technology, the sensor can distinguish between humans and pets weighing up to 38 kg (85 lbs), preventing common false alarms.

• True Motion Recognition™: An advanced algorithm that differentiates between a moving person and environmental disturbances like air curtains or swaying blinds.

• PowerG Wireless Reliability: * Military-Grade Encryption: Uses 128-bit AES encryption to protect against digital attacks.

  • Exceptional Range: Offers line-of-sight communication up to 2 km, ensuring stable connectivity even in large homes or through thick interior walls.

  • Frequency Hopping: Automatically switches channels to bypass signal jamming or interference.

• Long Battery Life: Typically lasts 3 to 5 years (depending on usage) due to adaptive transmission power that preserves energy.

---

Technical Specifications

Feature	Specification
Detection Coverage	12 Meters / 90° Wide Angle
Camera Field of View	Matches PIR coverage (No “lost” areas)
Wireless Frequency	868 MHz (PowerG)
Pet Tolerance	Up to 38 kg (85 lbs)
Mounting Height	1.8m to 2.4m (No vertical adjustment needed)
Battery Type	2 x 3V CR123A Lithium
Tamper Protection	Front cover and back-wall tamper
Compatibility	DSC PowerSeries Neo, PowerSeries Pro, and Qolsys panels

---

Why Choose the PG8934P?

The biggest advantage of this detector is the reduction of “police dispatch” costs associated with false alarms. By seeing what triggered the sensor, you can instantly determine if a child came home early or if an actual break-in is in progress.
