Description

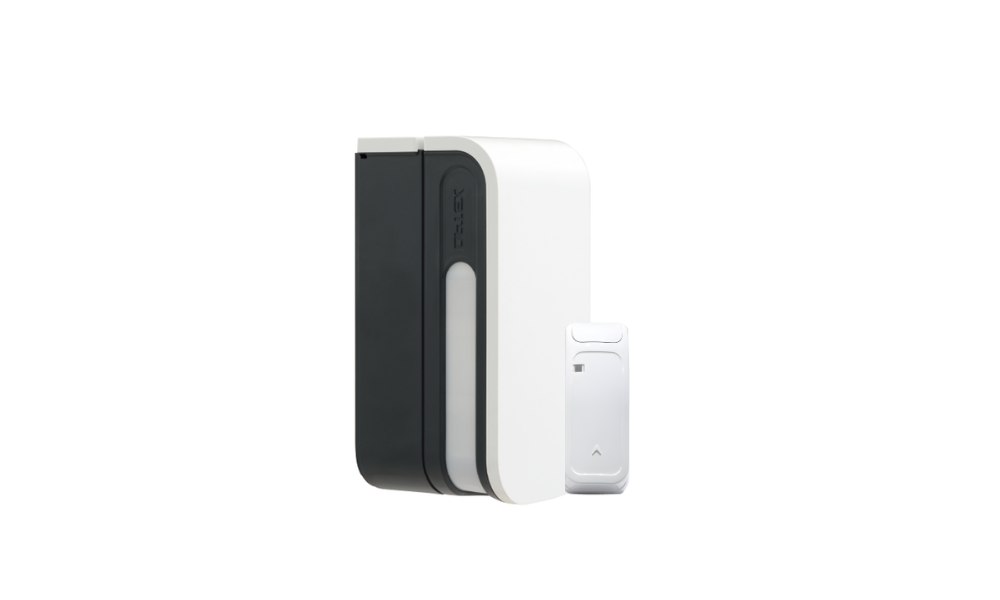

The NEO OPTEX BXS-RAM is a high-performance, battery-operated outdoor sensor from the BX Shield series. Designed specifically for “boundary” protection, this unit secures the immediate perimeter of your building by creating a long, narrow detection “curtain” along the walls. By combining OPTEX precision with DSC NEO PowerG wireless technology, it offers elite security for windows and entry points.

---

Product Components

• 1x OPTEX BXS-RAM (Dual-Side PIR with Anti-Masking): A specialized “boundary” sensor that detects movement on both the left and right sides.

• 1x NEO 868 MHz PowerG Transmitter: An integrated module providing military-grade 128-bit AES encryption and long-range wireless communication to DSC NEO alarm panels.

---

Key Features

• 24m Total Detection Area: The sensor detects up to 12 meters on each side (Left and Right), providing a total of 24 meters of coverage. It is designed to be mounted in the center of a building face to protect all windows and doors along that wall.

• Completely Independent Sides: You can independently adjust the detection range (from 2.5m to 12m) and sensitivity for the left and right sides. This is ideal if one side of the sensor faces a fence while the other faces an open driveway.

• Active Infrared Anti-Masking: Automatically detects if the lens is covered, spray-painted, or blocked, sending an alert to your system even when the alarm is disarmed.

• Pet-Friendly Low Mount: Designed for mounting at 0.8m – 1.2m. The sensor ignores pets moving near the ground while catching human intruders approaching the building.

• Extreme False Alarm Immunity: Uses SMDA (Super Multi-Dimension Analysis) logic to filter out environmental noise such as swaying bushes, passing cars, or changes in temperature.

• Individual Alarm Outputs: The system can distinguish between a “Left Side” trigger and a “Right Side” trigger, allowing you to know exactly where an intruder is located.

• Sleek, Modern Aesthetic: Features a slim, contemporary design that blends seamlessly with modern architecture.

---

Technical Specifications

Feature	Specification
Detection Method	Passive Infrared (PIR)
Total Coverage	24 Meters (12m Left / 12m Right)
Adjustable Range	2.5m, 3.5m, 6m, 8.5m, 12m (Per side)
Mounting Height	0.8m – 1.2m (Low Mount)
Wireless Protocol	PowerG 868 MHz (via NEO TX)
Anti-Masking	Active Infrared (Digital)
Weather Protection	IP55 (Dust and Jet-Water Resistant)
Operating Temperature	-30°C to +60°C
Power Source	3V – 9V DC (Lithium or Alkaline Battery)

---

Why Choose the BXS-RAM?

The BXS-RAM is the ultimate solution for “curtain” protection. Unlike a standard wide-angle sensor that looks out into the yard, this sensor looks along the building. This allows you to arm your perimeter while you are still active in the garden, as it only triggers if someone gets close enough to touch the windows or doors.
