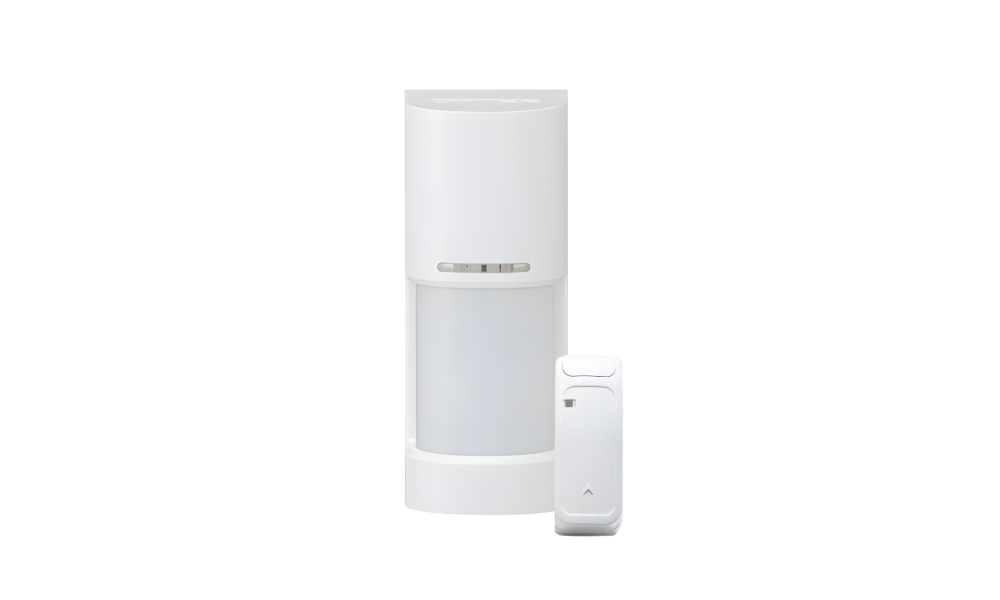

NEO OPTEX WXI-RAM: 180° Outdoor Wireless Perimeter Protection

Secure your property with the ultimate hybrid of OPTEX panoramic detection and DSC NEO military-grade wireless communication. This specialized kit provides a massive 180-degree detection field, making it the most efficient way to monitor wide-open areas like driveways, terraces, and garden perimeters with a single device.

Core Components

1. OPTEX WXI-RAM (180° PIR with Anti-Masking)

The WXI-RAM is the flagship of the WX Infinity series, designed to replace multiple standard sensors with one wide-angle unit.

• Panoramic 180° Field of View: Provides 12 meters of coverage in both directions. One unit can effectively secure the entire front or rear face of a building.

• Independent Detection Zones: The left and right 90° zones can be configured independently for sensitivity and distance (ranging from 2.5m to 12m).

• Digital Anti-Masking: Features active infrared technology that detects if the lens is covered, obscured, or sprayed with paint, sending an immediate alert to the control panel.

• Pet-Friendly Low Mount: Engineered for mounting heights of 0.8m to 1.2m. Its “Double Layer” logic requires both upper and lower detection zones to be triggered, allowing pets to roam freely below the detection line without causing false alarms.

• SMDA Logic: Advanced “Super Multi-Dimension Analysis” filters out environmental triggers like swaying branches, moving shadows, or adverse weather.

2. NEO 868 MHz PowerG Transmitter

This kit includes the DSC NEO PowerG integration module, providing a professional-grade wireless link to your security system.

• Encryption: Uses 128-bit AES encryption to prevent signal hacking and unauthorized interference.

• Frequency Hopping: Automatically switches between wireless channels to bypass jamming attempts.

• Extended Range: PowerG technology offers superior wireless distance, capable of communicating through thick walls and over large outdoor distances.

---

Technical Specifications

Feature	Specification
Detection Method	Passive Infrared (PIR)
Detection Range	12 Meters (Adjustable to 2.5m, 3.5m, 6.0m, 8.5m)
Detection Angle	180° Wide Angle
Mounting Height	0.8m – 1.2m (Low Mount)
Wireless Protocol	PowerG (868 MHz)
Anti-Masking	Active Infrared (Digital)
Weather Protection	IP55 (Dust and Water Resistant)
Operating Temperature	-30°C to +60°C
Power Source	Lithium Batteries (CR123A / 1/2AA compatible)

---

Key Advantages for the User

• Cost Efficiency: One 180° sensor covers the same area as two 90° sensors, reducing hardware costs and installation time.

• Boundary Security: Ideal for “wall-to-wall” detection along the side of a house or commercial warehouse.

• High Reliability: The combination of OPTEX hardware and PowerG wireless protocol is widely considered the most stable outdoor wireless solution in the security industry.
