Description

This high-security outdoor solution combines the multi-technology detection of OPTEX with the advanced PowerG wireless communication of DSC NEO. The QXI-RDT is a “Dual-Tech” sensor, meaning it uses both PIR and Microwave technology to virtually eliminate false alarms in challenging outdoor environments.

---

Product Components

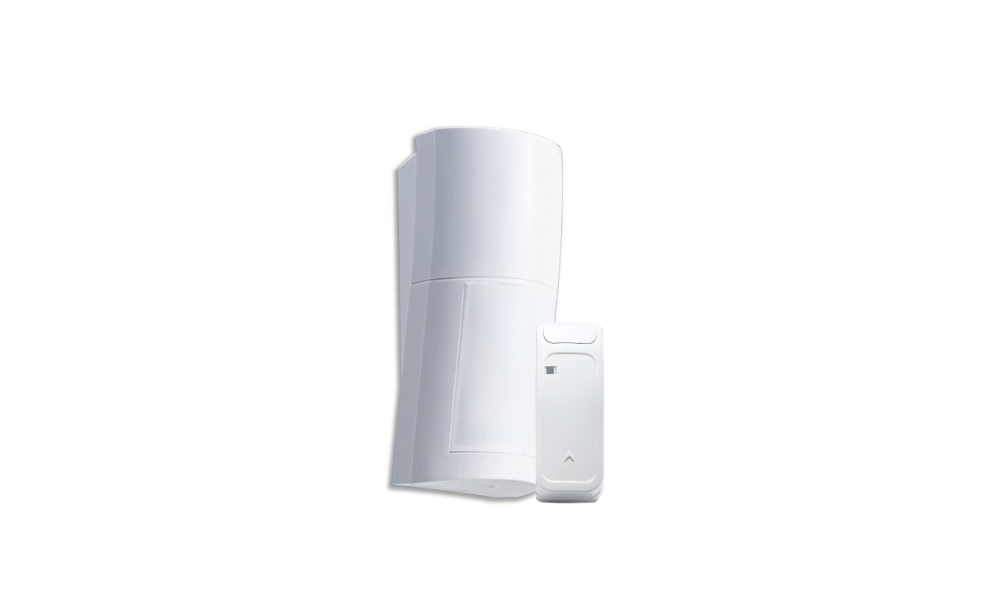

• 1x OPTEX QXI-RDT (PIR + Microwave + Anti-Masking): A battery-operated, dual-technology outdoor sensor with a 120° field of view and 12m range.

• 1x Wall Mount Bracket (CA-1W): A multi-angle bracket that allows for precise horizontal and vertical adjustment to optimize the detection area.

• 1x NEO 868 MHz PowerG Transmitter: Pre-installed integration module that provides encrypted, long-range wireless connectivity to any DSC NEO or PowerSeries Pro alarm panel.

---

Key Features

• Dual-Technology (PIR + Microwave): The sensor only triggers an alarm when both the Infrared and Microwave sensors detect movement simultaneously. This provides the highest level of stability against wind, swaying vegetation, and shifting sunlight.

• Selectable Mounting Height:

  • High Mount (2.2m – 2.7m): Creates a multi-level volumetric pattern to catch intruders while staying out of reach of vandals.

  • Low Mount (0.8m – 1.2m): Activates “Pet Alley” mode, allowing large pets to move freely below the detection zone.

• Active Infrared Anti-Masking: Detects if an intruder attempts to block or spray the lens, ensuring the system cannot be “blinded” without an alert being sent.

• Super Multi-Dimension Analysis (SMDA): An onboard digital algorithm that analyzes detection patterns to distinguish between a human and environmental noise (like heavy rain or shadows).

• PowerG Wireless Security: Benefit from 128-bit AES encryption and frequency-hopping technology, providing military-grade protection against signal jamming and hacking.

---

Technical Specifications

Feature	Specification
Detection Method	Passive Infrared (PIR) & Microwave
Coverage Area	12 Meters / 120° Wide Angle
Mounting Height	2.2 – 2.7m (High) or 0.8 – 1.2m (Low)
Pet Immunity	Yes (Dedicated Pet Alley mode in Low Mount)
Anti-Masking	Yes (Active Infrared)
Wireless Protocol	PowerG 868 MHz (via included NEO TX)
Weather Protection	IP54 (UV resistant ASA body)
Operating Temperature	-40°C to +45°C
Battery Life	Up to 3–5 years (depending on settings and battery type)

---

Why Choose the QXI-RDT?

The “RDT” model is the top-tier choice for owners who need zero-compromise outdoor security. By adding Microwave detection to the standard PIR, this unit can be placed in areas with moving plants or high-glare surfaces where lesser sensors would trigger constant false alarms.
