Description

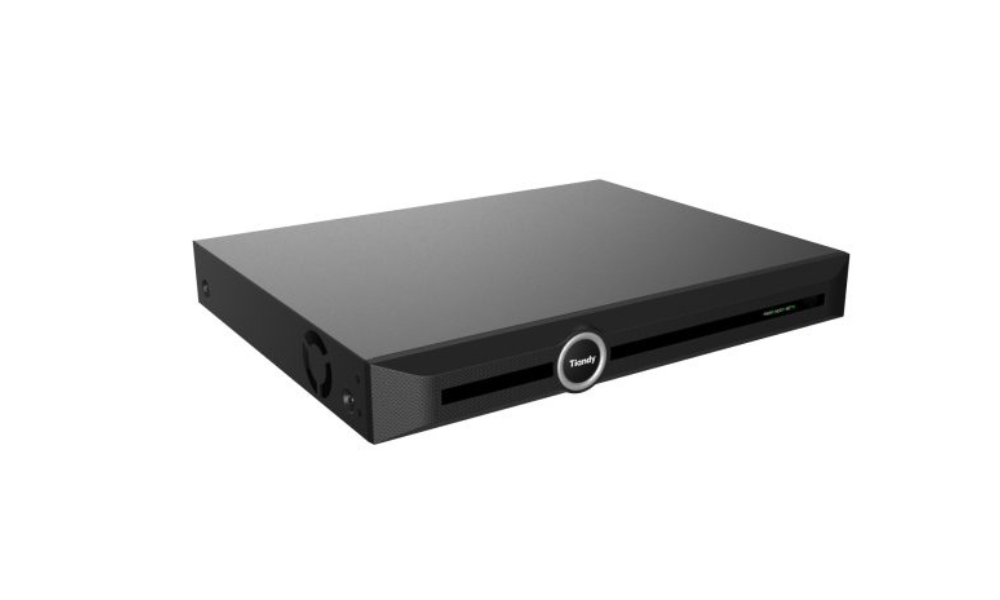

The Tiandy Lite Series 20-channel NVR is a reliable, plug-and-play video recorder designed for medium to large IP surveillance systems. With 16 built-in PoE ports, support for up to 8MP cameras, and 4K HDMI output, it provides an easy installation solution and powerful recording performance for commercial and residential security deployments.

This embedded Linux NVR supports advanced video compression, intelligent playback, and large storage capacity, making it ideal for businesses, estates, warehouses, and multi-camera installations.

---

Key Features

• 20-channel IP camera input

• 16 integrated PoE ports for simple plug-and-play installation

• Supports up to 8MP camera recording

• 4K HDMI video output for ultra-clear display

• H.265 / S+265 compression for reduced storage and bandwidth use

• Live view, recording, playback, and backup functionality

• Compatible with Tiandy and third-party ONVIF IP cameras

• Ideal for commercial, retail, estate, and industrial security systems

---

Technical Specifications

System

• Operating System: Embedded Linux

• Channels: 20 IP camera inputs

• PoE Ports: 16 × RJ45 (built-in)

• Network Interface: 1 × RJ45 10/100/1000 Mbps

Video & Recording

• Max Recording Resolution: Up to 8MP

• Video Output: HDMI (up to 4K), VGA simultaneous output

• Compression: S+265 / H.265 / S+264 / H.264

• Live View / Playback: Multi-channel live viewing and synchronous playback

• Recording Modes: Continuous, motion detection, scheduled

Bandwidth & Performance

• Incoming Bandwidth: up to ±160 Mbps

• Outgoing Bandwidth: up to ±64–100 Mbps

• Preview / Playback decoding supports multiple HD streams simultaneously

Storage

• HDD Bays: 2 × SATA

• Max Capacity: up to 10TB per HDD

• Backup: USB and network backup

Smart & Integration

• ONVIF compatibility

• Supports intelligent IP camera functions

• Remote monitoring via VMS and mobile app

---

Ideal Applications

• Business and retail security systems

• Warehouses and logistics sites

• Estate and residential complexes

• Multi-camera installations

• Schools, offices, and commercial buildings
