Description

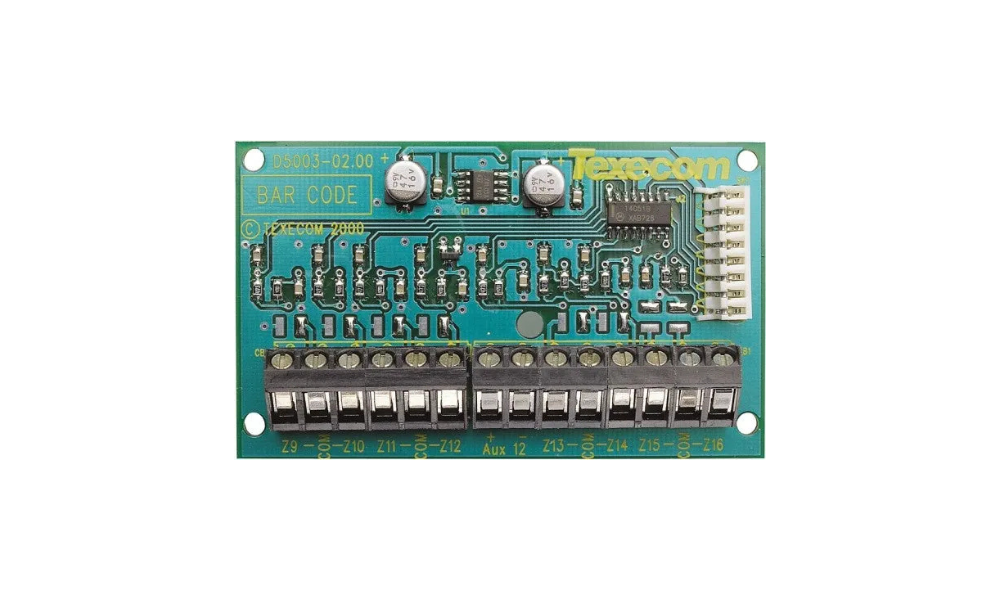

TEX Premier 8XE Local Zone Expander

Expand your Texecom alarm system with the TEX Premier 8XE Local Zone Expander, designed to add 8 additional programmable wired zones to compatible Texecom Premier control panels. The 8XE plugs directly onto the main control panel, making installation quick and eliminating the need for additional remote wiring hardware.

Ideal for residential and small commercial security installations, the Premier 8XE provides a simple and cost-effective way to increase system capacity as your security requirements grow.

Features

• Adds 8 additional programmable End-of-Line (EOL) wired zones
• Plug-on design for easy installation directly onto the control panel
• Compatible with Texecom Premier Elite 24 control panels and selected Premier Series panels
• Supports individually programmable zones for maximum installation flexibility
• Includes 12V auxiliary power output for connected detectors
• Reliable wired expansion for larger alarm systems
• Compact PCB design requiring minimal panel space
• Grade 2 compliant for professional security installations

Specifications

• Type: Local Zone Expander
• Additional Zones: 8 Programmable EOL Zones
• Power Output: 12V Auxiliary Output
• Installation: Direct plug-on PCB module
• Compliance: Grade 2, Class II
• Part Number: CCD-0001

Compatible With

• Texecom Premier Elite 24 Control Panel
• Selected Texecom Premier Series control panels (including Premier 412, 816, 816 Plus, and 832)

Ideal For

• Home security system expansions
• Commercial alarm installations
• Adding extra PIR detectors, door contacts, window contacts, or other wired security devices without replacing the main control panel.
