Description

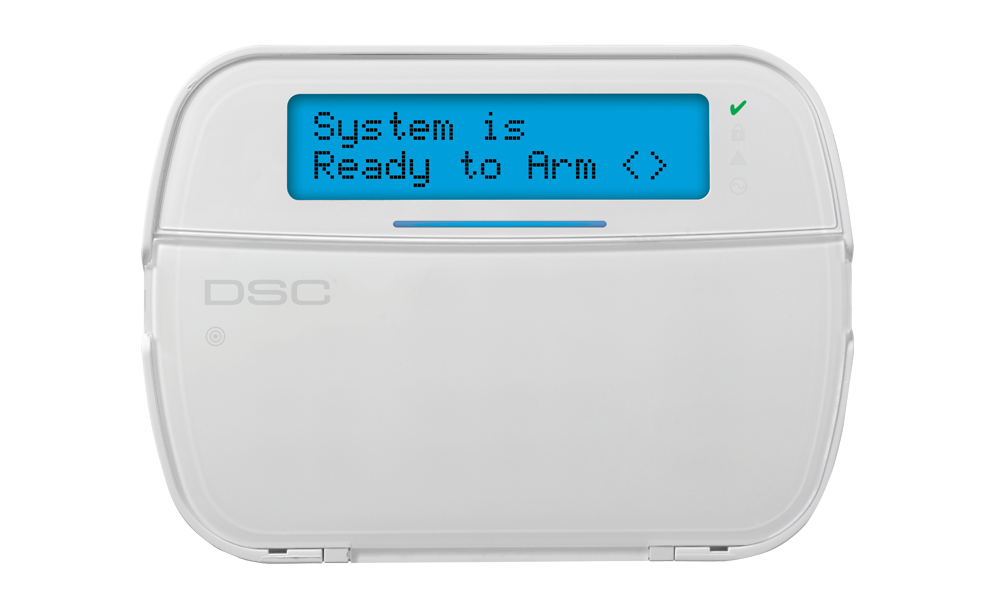

NEO Wireless LCD Keypad (868MHz)

Model: HS2LCDWF8

The HS2LCDWF8 is a sleek, full-message wireless LCD keypad that provides complete control over your PowerSeries NEO security system without the need for running wires to the entry points. It features a high-contrast display and intuitive menu-driven interface, making system operation, programming, and status checks simple for any user.

---

Key Features

• Full 32-Character Display: Provides real-time status updates in plain language (e.g., “Front Door Open” or “System Armed”) rather than confusing coded numbers.

• Wire-Free Installation: Powered by batteries, this keypad can be mounted on any wall or placed on a desk (using a stand), providing maximum flexibility for architectural layouts.

• Global System Control: Allows users to arm/disarm the system, bypass zones, and view event logs from a convenient, portable interface.

• PowerG Technology: Features military-grade encryption and adaptive transmission power to ensure a highly secure and reliable wireless link to the control panel.

• Dedicated Emergency Keys: Includes one-touch Fire, Medical, and Police panic buttons for immediate assistance in critical situations.

• Adjustable Backlight & Buzzer: Users can customize the brightness of the screen and the volume of the key-press tones to suit the environment.



---

Technical Specifications

Feature	Specification
Frequency	868MHz (PowerG Protocol)
Display	Blue LCD with white backlighting
Battery Type	4 x 1.5V AA Alkaline
Battery Life	~3 Years (Typical use)
User Proximity	Supports Optional Proximity (Prox) Tags
Operating Temp	-10°C to 55°C
Dimensions	168 x 122 x 20 mm
Tamper Protection	Wall and Case tamper

---

User Interface Overview

Five Programmable Function Keys: Can be customized for one-touch commands like “Stay Arm,” “Away Arm,” or “Chime On/Off.”

Multilingual Support: The display can be programmed to show multiple languages depending on user preference.

Status Icons: Clear visual indicators for Power (AC), Ready to Arm, Armed, and System Trouble.

---

Installation Benefits

• Easy Enrollment: Simple “Press and Hold” enrollment process directly at the keypad.

• Flexible Placement: Ideal for bedside tables, secondary exits, or rentals where drilling holes for wires is not permitted.

• Full Programming Access: Unlike basic keypads, this model allows installers to access the full programming menus of the NEO panel wirelessly.

Pro Tip: If using the keypad on its battery-powered wireless setting, it will enter a “sleep mode” after a period of inactivity to conserve power. Pressing any key will instantly wake the display.
