Description

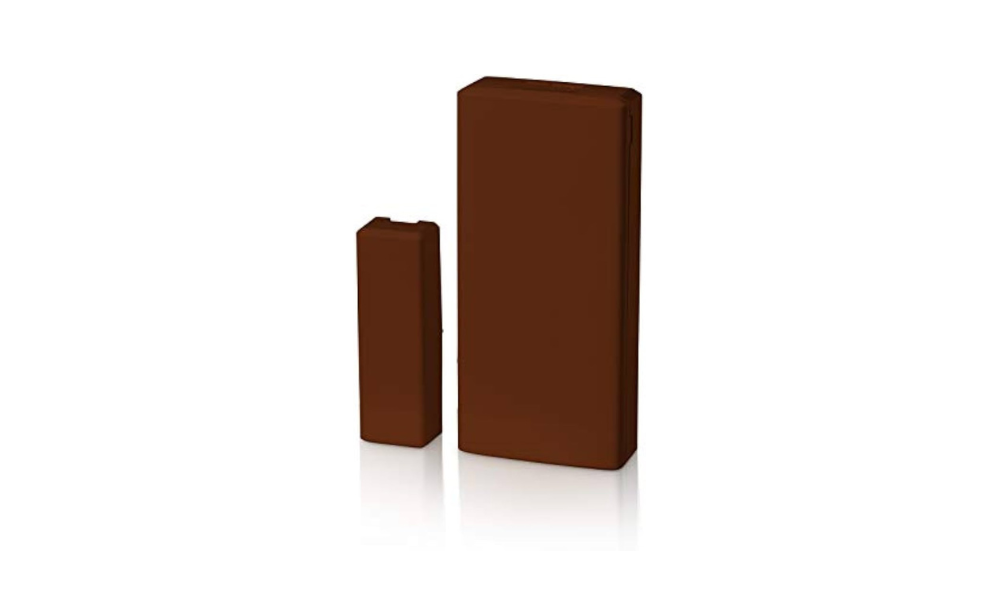

NEO Wireless Door/Window Contact with Auxiliary Input (868MHz)

Model: PG8945BR (Brown)

The PG8945 is a highly flexible, professional-grade wireless magnetic contact. While its primary function is to protect doors and windows, it features a built-in auxiliary input that can be wired to standard hardwired devices. This allows you to turn any traditional wired sensor into a wireless PowerG zone. The brown housing is specifically designed to blend into wooden frames and dark interiors.

---

Key Features

• Dual-Function Protection: Works as a standard magnetic reed switch for doors/windows and includes an extra input for an external dry contact device.

• Integrated Auxiliary Input: Supports Normally Closed (NC) or End-of-Line (EOL) configurations, making it ideal for connecting hardwired floor pressure mats, roller shutter sensors, or existing wired contacts.

• PowerG Technology: Delivers the industry’s most robust wireless encryption (AES-128) and Frequency Hopping (FHSS) to prevent signal jamming and ensure high-security communication.

• Discreet Aesthetics: The deep brown finish is perfect for timber doors, mahogany frames, or dark-painted surfaces, offering a much cleaner look than standard white sensors.

• Long-Range Performance: Provides significantly greater range than standard wireless contacts, allowing for installation in large residential or commercial properties.

• Simple Maintenance: Features a visible link quality indicator on the device, and battery replacement is quick and tool-free.

---

Technical Specifications

Feature	Specification
Frequency	868MHz (PowerG Protocol)
Color	Brown (Matching RAL/Wood tones)
Auxiliary Input	1 (Supports NC or EOL)
Battery Type	3V CR123A Lithium
Battery Life	Up to 8 Years (Typical use)
Operating Temp	-10°C to 55°C
Dimensions	81 x 34 x 25 mm
Tamper Protection	Front cover and back-wall tamper
Certification	Grade 2 / Class II

---

Versatile Application Ideas

• Wooden Entry Doors: Blends into aesthetic wood finishes while providing high-security perimeter monitoring.

• Roller Shutters: Mount the PG8945 inside the building and wire the auxiliary input to a floor-mounted roller shutter contact.

• Double Doors: Use the internal magnet for one door leaf and wire a small hardwired contact from the auxiliary input to the second door leaf to protect both with a single wireless zone.
