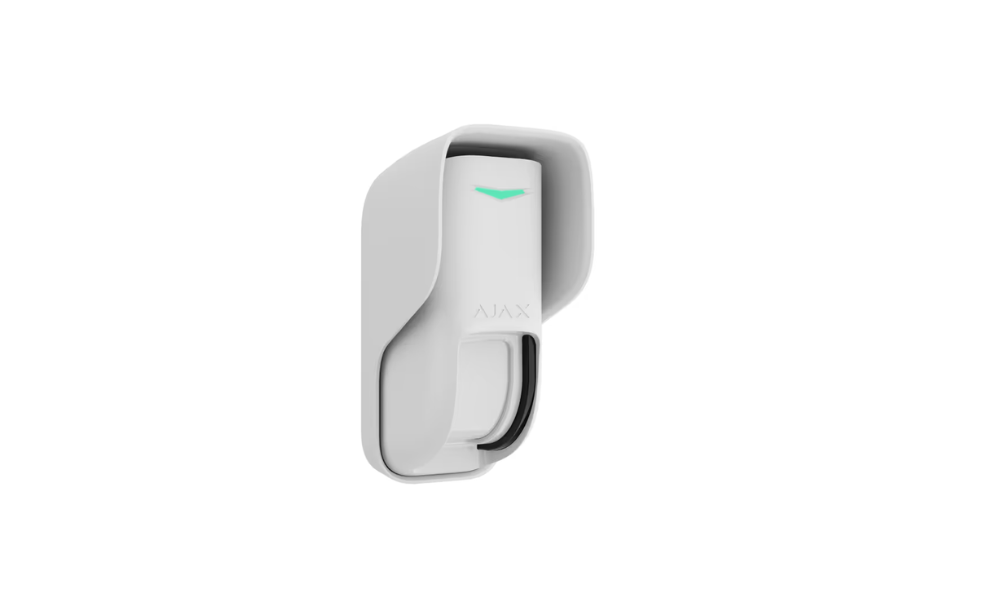

AJAX MotionProtect Curtain Outdoor High-Mount (MW)

Elevate your perimeter security with the AJAX MotionProtect Curtain Outdoor High-Mount. This specialized curtain-style motion detector is engineered for high-point installation, offering a narrow 8-degree beam that creates an invisible “wall” of protection. By combining Passive Infrared (PIR) with Microwave (MW) technology, it delivers unparalleled accuracy in the most challenging outdoor environments.

Designed for mounting heights between 2m and 4m, this sensor stays out of reach of intruders while providing a 12-meter long “shield” along walls, window lines, or fences.

---

Dual-Technology Precision

• PIR + Microwave (Dual-Tech): This sensor requires both heat signatures (PIR) and frequency shifts (MW) to trigger an alarm. This dual-verification system virtually eliminates false alarms caused by swaying branches, moving shadows, or heat waves.

• 8° Narrow Detection Arc: The ultra-narrow beam allows the sensor to monitor a path directly adjacent to a building without being triggered by movement just a few feet away, making it perfect for shared driveways or tight spaces.

---

Key Features

• High-Mount Versatility (2m–4m): Specifically designed for elevated installation, keeping the device secure from tampering while providing a superior “top-down” detection angle.

• 12m Detection Range: A powerful long-range beam that can cover an entire building facade or a long garden perimeter with a single unit.

• Anti-Masking Protection: Instantly alerts the user if the sensor lens is covered, painted, or obstructed, ensuring the system is never “blinded” without your knowledge.

• Jeweller Wireless Technology: Enjoy encrypted, long-range communication with your AJAX Hub, featuring real-time battery monitoring and instant mobile notifications.

• Sleek White Finish: Designed to blend seamlessly into modern architectural styles and white exterior walls.

---

Technical Specifications

Feature	Specification
Detection Method	PIR + Microwave (24GHz)
Coverage Area	12m Long, 8° Narrow
Mounting Height	2.0m to 4.0m
Detection Speed	0.3 to 2.0 m/s
Communication Protocol	Jeweller (Encrypted)
IP Rating	IP54 (Weatherproof)
Color	White

---

Why Choose the High-Mount Curtain?

Traditional curtain sensors are often mounted low, making them vulnerable to pets or accidental obstructions. The High-Mount Curtain moves the protection out of reach, providing a cleaner line of sight. It is the ideal solution for protecting storefronts, second-story balconies, and private alleyways where high-security accuracy is a non-negotiable requirement.

Note: This unit is fully compatible with AJAX Hubs and can be configured entirely via the AJAX mobile app for a fast and professional setup.
