Description

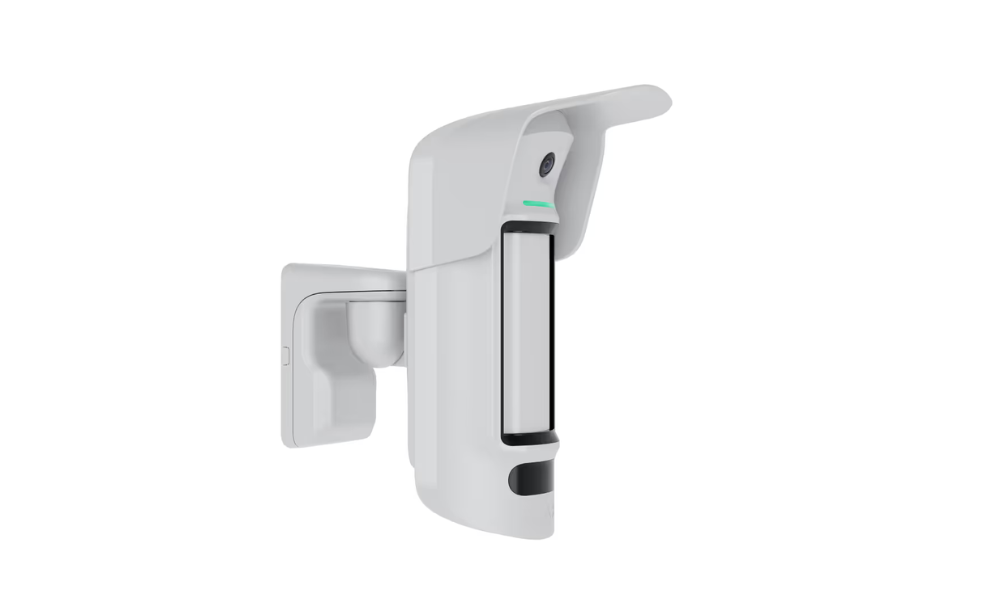

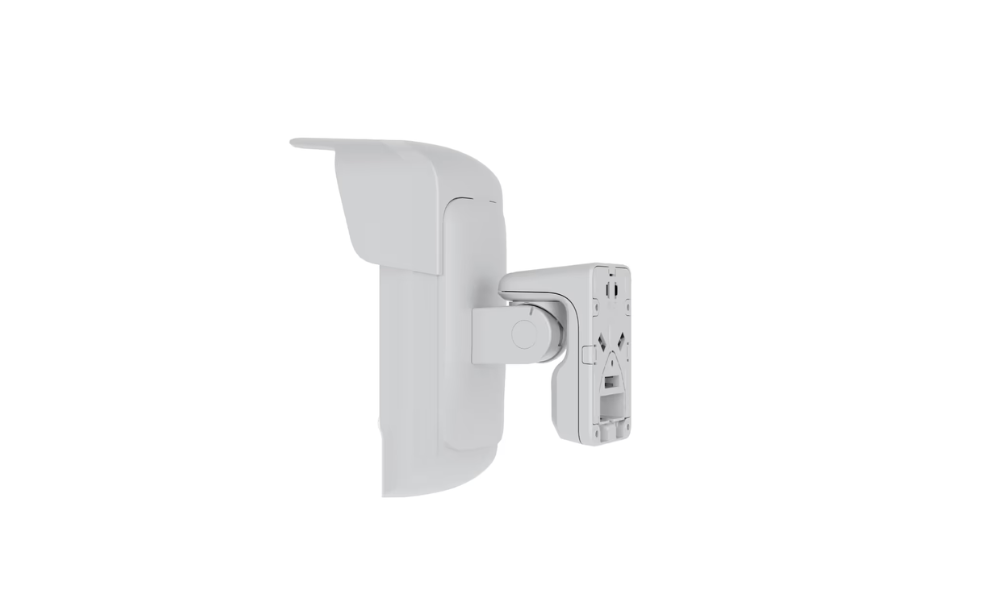

AJAX MotionCam Outdoor High-Mount (PhOD)

Elevate your security with the AJAX MotionCam Outdoor High-Mount, a specialized motion detector designed for elevated installation and visual verification. Featuring PhOD (Photo on Demand) capabilities, this sensor doesn’t just detect movement—it allows you to see what’s happening at your property in real-time, anytime.

Designed for mounting heights between 2m and 4m, this device is perfect for monitoring high-clearance areas like warehouse entrances, second-story balconies, or gated perimeters where a standard-height sensor might be vulnerable to tampering.

---

Advanced Visual Verification

• Photo on Demand (PhOD): Take a real-time photo of your property via the AJAX app at any moment to check on your premises.

• Alarm Verification: In the event of an alarm, the built-in camera captures a series of photos, allowing you and the monitoring station to immediately distinguish between a real threat and a false alarm.

• HDR Camera: Equipped with an HDR camera and IR illumination for clear, usable images even in low-light or high-contrast conditions.

---

Key Features

• Elevated Mounting (2m–4m): Specifically engineered for high-point installation, providing a “top-down” view that maximizes coverage and minimizes blind spots.

• LISA Algorithm: Uses advanced digital algorithms to filter out swaying trees, clouds, and birds, ensuring you only get alerted for genuine human activity.

• Anti-Masking Protection: Features a sophisticated anti-masking system that alerts you instantly if the lens is painted, covered, or obstructed.

• Weatherproof Reliability: Built to withstand the elements with an IP55 rating and a protective Hood included to shield the sensors from rain and snow.

---

Technical Specifications

Feature	Specification
Mounting Height	2.0m to 4.0m
Detection Range	Adjustable, up to 15 meters
Visual Verification	Photos on Alarm & Photo on Demand (PhOD)
Communication Protocol	Jeweller (Alarms) & Wings (Image Transmission)
Power Supply	4 × CR123A batteries (up to 3 years life)
Operating Temperature	–25°C to +60°C
Protection Class	IP55

---

Why the High-Mount MotionCam?

Traditional outdoor sensors are often limited to lower mounting heights to maintain accuracy. The MotionCam Outdoor High-Mount breaks this barrier, offering a wider field of view and keeping the device out of reach of intruders. With the added peace of mind provided by PhOD, you are always just one tap away from seeing exactly what is happening on your property.

Included in the box: MotionCam Outdoor High-Mount, SmartBracket mounting panel, Hood (weather shield), and installation kit.
