Description

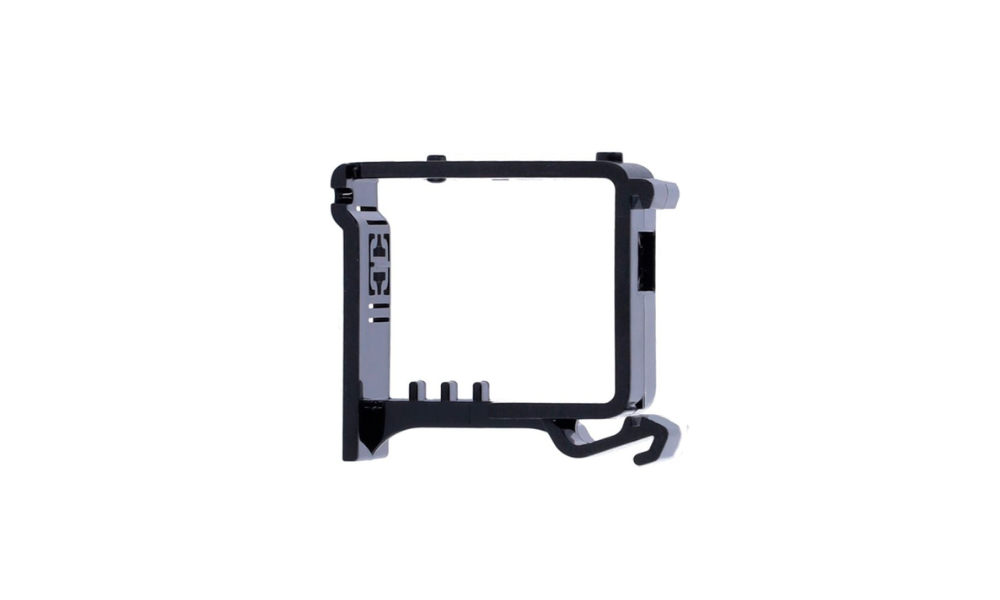

The Ajax DIN Holder is a compact mounting bracket designed for secure installation of the Ajax Relay or Ajax WallSwitch on a standard 35mm DIN rail. It is ideal for use inside electrical distribution boards, server cabinets, junction boxes, and automation panels, providing a clean and professional installation solution.

Key Features

• Compatible with Ajax Relay Jeweller and Ajax WallSwitch Jeweller
• Secure mounting on standard 35mm DIN rails
• Tool-less installation with side hinge mounting
• Built-in manual control button for relay operation
• Passive ventilation openings for improved cooling
• Includes sticker set for circuit identification
• Compact design with the same width as a single-phase circuit breaker
• Durable black polycarbonate construction

Technical Specifications

• Dimensions: 52 × 41 × 18 mm
• Weight: 9 g
• Material: Polycarbonate
• Colour: Black
• Operating temperature: -25°C to +60°C
• Operating humidity: Up to 75%
• Installation method: DIN rail mounting (35mm)

Applications

The Ajax DIN Holder is commonly used in:

• Electrical DB boards
• Smart home automation systems
• Server cabinets
• Industrial control panels
• Remote power management installations

The holder allows neat integration of Ajax automation devices into professional electrical environments while maintaining easy access and reliable operation.
